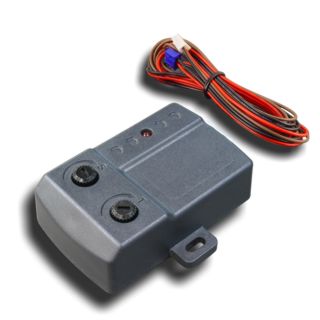

  • DYNATRON Digital Tilt/Shock Sensor DYNATRON Digital Tilt/Shock Sensor

DYNATRON Digital Tilt/Shock Sensor

Price: $ 115.04 incl. GST
Add Item to Cart

This sensor has been developed to detect a change in angle of the a vehicle as well as specific impact upon the vehicle.

Description

This sensor not only detects anti jacking but has an advantage over conventional shock sensors by measuring inputs against the accelerometer which references a "set point" relative to the surface.  Many conventional "shock" sensors use a magnet and coil combination which can be prone to false alarms through EMF transmissions associated with digital phones and radio transmitters.




Operation

Adjustable sensitivity:
 Allows installer/user to adjust the two sections of the sensor independently
Plug and play for service: Designed to allow easy access for service technicians. Plugs and sockets are located inside the main control module to protect against access by thieves.
Visual Output
Trigger status indicator: LED indicator shows when sensor is triggered.
Specifications
Super low current draw: 3mA when idle, 6mA when triggered for 1 second.
Wide Operating voltage: Operating voltage +9VDC to +15VDC.
Operating temperature: -20 degrees to +85 degrees for equipment designed to be installed within vehicle cabin.
Polarity protection:  The system circuitry is design to protect itself against accidental battery polarity reversal. This can happen when replacing the vehicle battery.
Trigger output rating: Each output of the sensor can sink 300mA, suitable for energising relay coil when necessary.
Trigger output is back EMF protected:  Clamping diode protects the output driver transistor(s) to stop damage from the super high voltages that occur when a relay coil is released.
Effective range: Effective range 1 to 50 degrees from flat.
Maximum range angle of deviation: 50 degrees on any axis.
Minimum detectable angle:

2 degrees on any axis.

Warranty (Return to Base)
Manufacturers warranty on Sundry items: Guarantees accessories are free from manufacturing defects for 12 months from time of purchase.
Manufactured to ISO9001. Built within world standard production facility.
