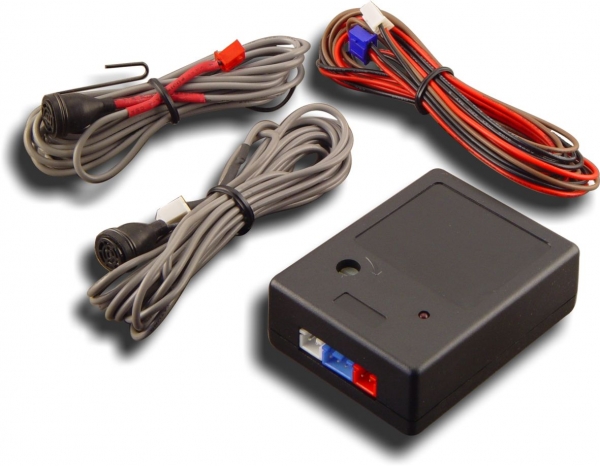

DYNATRON Ultasonic Sensor

Price: $ 79.95 incl. GST
Add Item to Cart

DYNATRON Ultra Sonic Sensor

Description

DYNATRON Ultra Sonic Sensor fitted to the top of the "A" pillar or in vans the "B" pillar for detection of movement in a confined space. See also Microwave and PIR sensors for alternative movement sensors.




Operation
Active Ultrasonic Protection Field:

Sensor uses a 40KHz sound wave to measure echoes from the inside of the vehicle. Any change in the echo is determined to be an intruder.
Adjustable sensitivity:

Sensor allows installer to adjust sensitivity to provide compatibility within different size vehicles.
Temperature compensative circuitry:

Ensures sensitivity does not change as ambient temperature rises or falls.
Plug and play for service:

Designed to allow easy access for service technicians. Plugs and sockets are located inside the main control module to protect against access by thieves.
Compatability
Compatible with: DYNATRON alarm control systems only
Visual Output
Trigger status indicator: LED indicator shows when sensor is triggered.
Specifications
Low current draw: 11.5mA when idle, 26.7mA when triggered for 2 seconds.
Wide Operating voltage: Operating voltage +9VDC to +15VDC.
Operating temperature: -20 degrees to +85 degrees for equipment designed to be installed within vehicle cabin.
Polarity protection: The system circuitry is design to protect itself against accidental battery polarity reversal. This can happen when replacing the vehicle battery.
Trigger output rating: Each output of the sensor can sink 300mA, suitable for energising a relay coil when necessary.
Trigger output is back EMF protected:   Clamping diode protects the output driver transistor(s) to stop damage from the super high voltages that occur when a relay coil is released.
Limitations:

Ultrasonics are not suitable for convertable vehicles as they will be triggered by air movement. Suggested alternative would be a microwave sensor.
Power Consumption:

Each additional sensor added to a system will increase it's over-all power consumption from the car battery. See the list of each sensor's power consumption.

Warranty (Return to Base)
Manufacturers warranty on Sundry items: Guarantees accessories are free from manufacturing defects for 12 months from time of purchase.
Manufactured to ISO9001. Built within world standard production facility.
