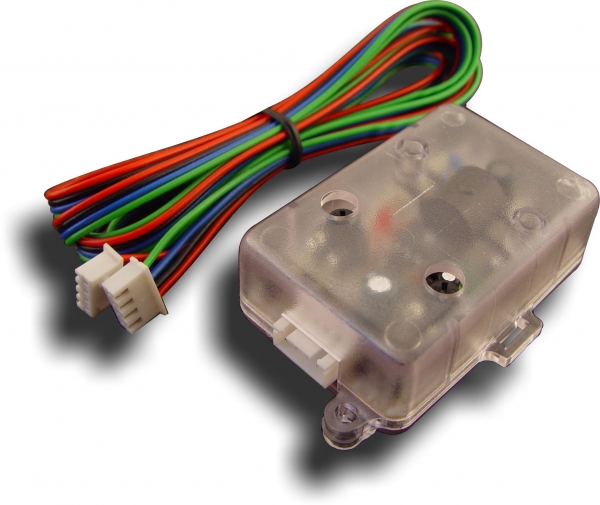

DYNATRON Dual Stage Shock Sensor

Price: $ 54.37 incl. GST
Add Item to Cart

Logic controlled Electro magnetic impact sensor with "warn away".


Description

Dual zone impact sensor with an intelligent Logic controller that not only activates a "warn" away upon initial detection, but will after repeated or firmer impact trigger the alarm. Warn away may be audible or visual, this is NOT and anti jacking sensor although Logic controller provides reliable operation and less incidents of false alarming.

Operation

Electro-Mechanical activation:

Sensor detects any vibration exerted upon the vehicle. An intruder is detected when the vibration exceeds the set level.

Independent Pre-shock Output:

Small vibrations exerted on the vehicle will result is a short series of 6 siren chirps or indicator flashes.

Independent Full-shock Output:

Stronger vibrations will put the sensor into a full alert condition and trigger the alarm.

Adjustable sensitivity: Sensor allows installer to adjust sensitivity to provide compatibility with different size vehicles.
Environment adjustment:

The logic controller of the sensor enables it to adjust it's sensitivity setting if the environment becomes unstable. The sensor lowers the sensitivity if it detects a constant vibration of increasing frequency (a heavy vehicle approaching), then returns to normal when everything settles.

Vibration Protection: Shock sensors will protect glass. Intruder attempting to interfere with either items will exert vibration upon the vehicle.
Temperature compensating circuitry: Ensures sensitivity does not change as ambient temperature rises or falls.
Plug and play for service: Designed to allow easy access for service technicians. Plugs and sockets are located inside the main control module to protect against access by thieves.
Compatability
Compatible with: DYNATRON alarm control systems only
Visual Output
Trigger status indicator: LED indicator shows when sensor is triggered, has one LED for each zone.
Warn Away: May be indicator response to trigger input to sensor.
Specifications
Super low current draw: 5.3mA when idle, 5.9mA when pre-triggered, 11.6mA when fully triggered. Both trigger current draw only last 2 seconds.
Wide Operating voltage: Operating voltage +9VDC to +15VDC.
Operating temperature: -20 degrees to +85 degrees for equipment designed to be installed within vehicle cabin.
Polarity protection: The system circuitry is design to protect itself against accidental battery polarity reversal. This can happen when replacing the vehicle battery.
Trigger output rating: Each output of the sensor can sink 300mA, suitable for energising a relay coil when necessary.
Trigger output is back EMF protected:   Clamping diode protects the output driver transistor(s) to stop damage from the super high voltages that occur when a relay coil is released.
Power Consumption: Each additional sensor added to a system will increase it's over-all power consumption from the car battery. See the list of each sensor's power consumption.

Warranty (Return to Base)


Manufacturers warranty on Sundry items: Guarantees accessories are free from manufacturing defects for 12 months from time of purchase.
Manufactured to ISO9001. Built within world standard production facility.
